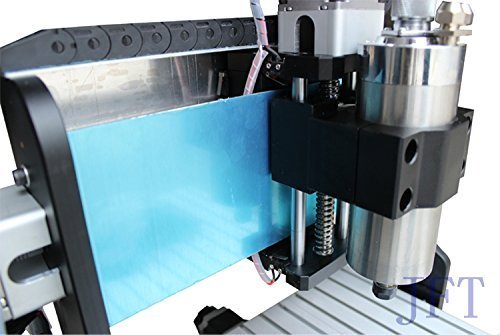

JFT 6090 3 Axis + 2.2kw + USB Port + Mach 3 + Industrial Level CNC Wood Router Stone and Metal Engraving/milling Machine

Description

we also have parallel port machine，it is the same price，and just leave message if you need parallel port machine; 1500w and 2200w: （Frequency conversion water-cooled machine）mainy used for carving solid wood、hardwood and stone、copper、 steel、iron、 aluminum alloy、 jade and jadeite、 etc; High Speed cnc 6090 router 2.2 kw spidle + 3 axis +USB port + industrial level parameters: Effective working travel : 900(X)mm*600(Y)mm*110(Z)mm Shape dimension : 1250*900*640mm Max.workpiece dimension :1150mm*650mm<150mm Work table dimension: 1150mm*720mm Frame materials : hard aluminum alloy 6063 and 6061 Acceptable material thickness: 150mm TBI brand 1605 ballscrew : Y axis/ Z axis TBI brand 1605 ballscrew Sliding units X axis Dia.25mm chrome plate shafts Y axis Dia.25mm chrome plate shafts Z axis Dia.16mm chrome plate shafts Stepping motor type : Nema 23 two-phase 3A Spindle motor brand new 2.2KW water cooling spindle, 24000RPM Principal axis collet : ER20/3.175 mm/6mm Spindle precision radial beat acuities : 0.01mm Carving Instructions: G code/TAB files/nc file/NCC files Maximum speed: 0-10000mm/min Carving speed : 50-8000mm/min (different materials differ) Machine weight :134KG Operating Voltage: AC220V or 110v Acceptable software Mach3,EMC2 Protection Emergency stop button , X,Y,Z axis limit switch suppot: XP / Win7 32 / Win7/Win8 /Win10 64 Packing included: 1, Engraving machine ×1 2, control box ×1 3,u disk (containing Mach3 and other supporting software) 4, tool box :contains engraving tool× 5, sandwich plate× 2, T type screw nut× 4 sets, six angle wrench supporting ×1 sets fine open end wrench ×2) 5, data line ×1 6, power line ×1 7, For Frequency conversion water-cooled machineThe cooling water pump ×1a tool auto-checking instrument×1
